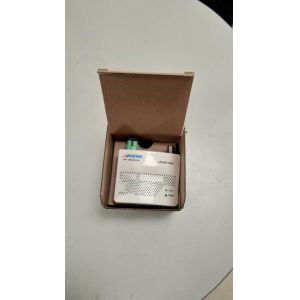

GPON EPON Network CATV+PON FTTH Mini Node With AGC Control Function

Product description:

FTTH mini node JZOR1000 is specially designed for the FTTH in CATV network. it is mini and low power consumption.

Technical index:

Items	Unit	Index	Remark
Downlink receiving parameters
Forward working bandwidth	MHz	45~1000
Nominal input optical power	dBm	-20~-0
Optical AGC range	dBm	-16~--3	Customizable
Opticla working wavelength	nm	1290~1600	Double windows
Optical reflection loss	dB	>45
Equivalent input noise current	PA/	≤8
Optical connector mode		SC/APC or FC/APC	Optional
RF inband flatness	dB	±1.0
Output reflection loss	dB	≥14
Link C/N	dB	>44	OMI=3.5%, 59 way PAL-D anolog TV channel, input optical power -9dBm for test.
Link C/CSO	dB	>61
Link C/CTB	dB	>60
Classical output level	dBμV	70@±2	-16dBm
		75@±2	-12 dBm
MER	dB	≥34	Input power -15dBm for test.
	dB	≥28.5	Input optical power -20dbm for test.
RF output port		F-type standard interface
Power adapter arameters
Power adapter input voltage	V	100~240	AC
Power adapter output voltage	V	5	DC
The whole machine parameters
Working temperature	℃	-25~+60
Storage temperature	℃	-40~+65
MTBF	h	80000
Power consumption	W	0.7
Size	mm	76×63×30	not including input, output interface

     Jizhong Technology is high-tech enterprise which integrated R&D,manufacture,sales,service.The enterprise under XI’AN Jizhong Intelligent Technology Co.,Ltd. and Shaanxi Jizhong Electronics Technology Co.,Ltd.Jizhong has a group professional R&D staff dedicated to optical fiber communication,data communication,home gateway,intelligent terminal and intelligent internet of things system for many years.It was identified as city-level technology centers, technology innovation demonstration enterprises in Nov.,2015.Xi’an Jizhong Intelligent Technology Co.,Ltd in January 2016, listed on the National Equities Exchange and Quotation”New Three Board”success. stock code: 835316.
     Products covers FTTH network transmission products and solutions, home intelligent gateway, DVB + OTT/IPTV intelligent terminal, home intelligent terminal products and integration solutions, smart home system and full range of communication control unit products, the fiber optic communications, data communications and video end-to-end network equipment and the overall solution.
